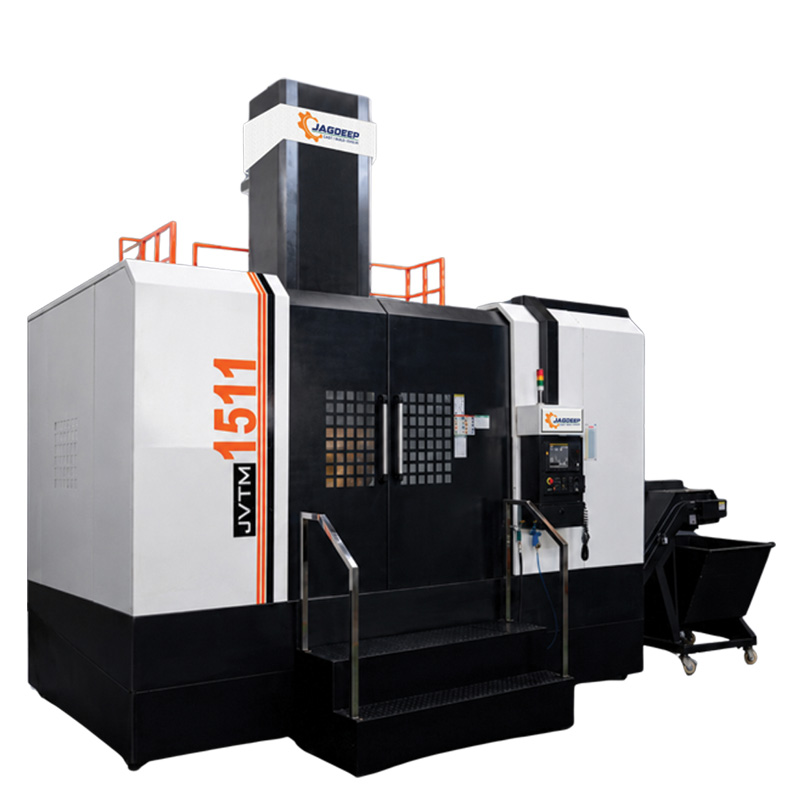

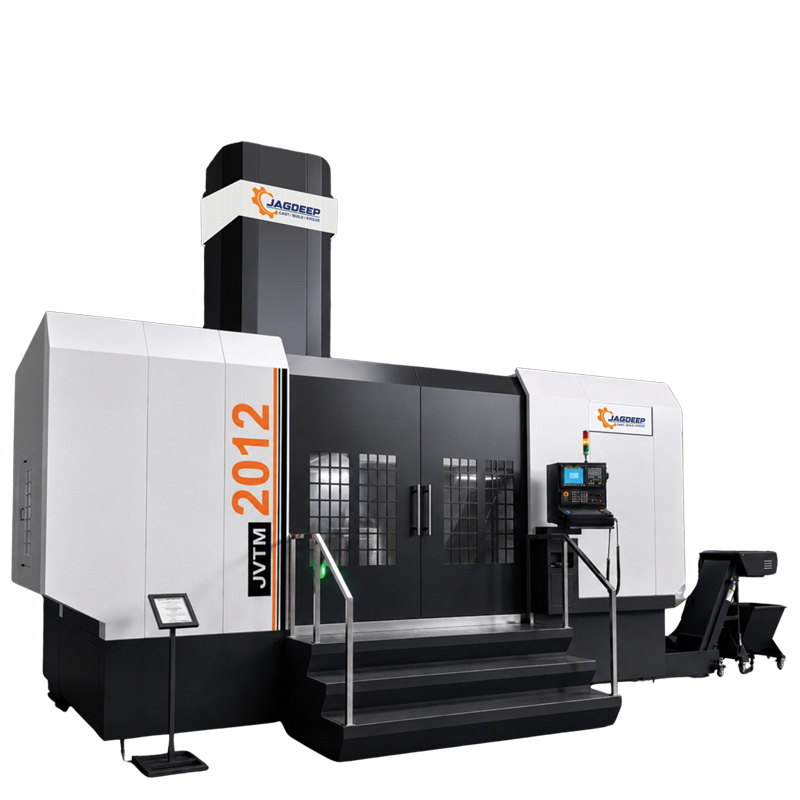

CNC Vertical Turning Lathe/Vertical Turn-Mill Centre

Oprations:

Facing Turning ID and OD Profile Machining Taper Machining PCD Drilling & Tapping (Turn-Mill) Offset Drilling/Thread Milling(Turn-Mill) Profile Milling(Turn-Mill) Slotting (Turn-Mill) Multi Axis Machining( Turn-Mill)
Models JVTC/JVTM-1 JVTC/JVTM-1.2 JVTC/JVTM-1.5 JVTC/JVTM-2 JVTC/JVTM-2.5 JVTC/JVTM-3 JVTC/JVTM-3.5 JVTC/JVTM-4
Descriptions Units
Table Diameter (Manual Chuck) MM 1000 1200 1500 2000 2500 3000 3500 4000
Max.Turning Diameter(*) MM 1200 1500 1700 2200 2700 3200 3700 4200
max. Turning Height (*) (With Fixed Cross Rail) MM 1000/1200
Max. Turning Height (*)
(With Moveable Cross Rail) 		NA 1500 1500 1500/2000 1500/2000 1500/2000 1500/2000 1500/2000
Max. Work piece Weight (*) KGS 4000 5000 6000 8000 10000 15000 15000 20000
Travel
X - Axis Rapid Rate MM/MIN 1000
Z - Axis Rapid Rate MM/MIN 1000
X-Axis (Horizontal Travel) (*) MM +600 to -200 +750 to -200 +850 to -200 +1100 to -200 +1350 to -200 +1600 to -200 +1850 to -200 +2150 to -200
Z-Axis (Vertical Ram Travel) 900/1100 900/1100 900/1100 900/1100 900/1100 900/1100 900/1100 900/1100 900/1100
Electric Motors
X-Axis Servo Motor (*) N-M 40 40 40 40 53 75 75 75
Z-Axis Servo Motor (*) 40 40 40 40 40 40 40 40 40
Main Spindle Servo Motor (Table)(*) (Continuous/30min.) Kw 15/18 15/18 15/18 22/26 30/36 36/40 36/40 60/75
Range of Table Speeds RPM 05-250 05-250 05-250 05-200 05-150 02-50 01-20 01-10
Live Spindle Motor (***) (*) Kw 7.5/11
Live Spindle Speed (***) (*) RPM 1500
Cnc Cantrol (*) - FANUC / Simens
Positioning-Linear Axis MM ±0.01
Repeatability-Linear Axis MM ±0.005
C-Axis Positioning Accuracy (***) Arc sec ±15 Arc Sec.
C-Axis Repeatability (***) Arc sec ±5 Arc Sec
Ovality (Turning) MM/M ±0.01
Taper (Turning) MM/300MM ±0.01

(*) Customization Available.
(**) Only With JVTC- Vertical Turning Lathe.
(***) only With JVTM- Vertical Turn Mill Centre.
